PRODUCT DESCRIPTION

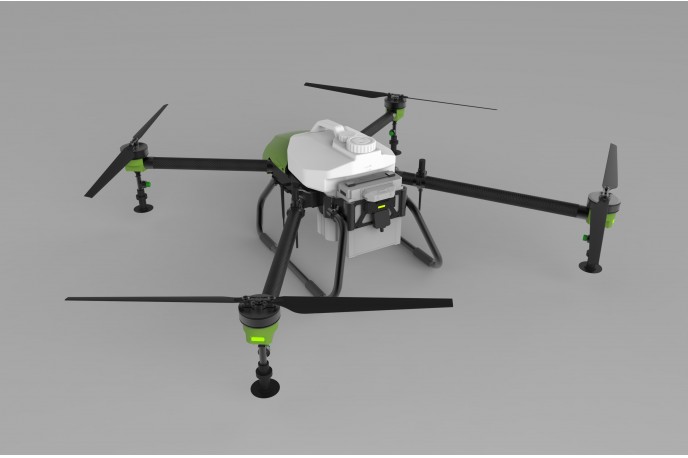

TENDTEK T20 Agricultural Drone UAV
It is a convenient, efficient and economical folding four-axis plant protection drone for agriculture.
Made of carbon fiber material, with light weight and high strength, the foldable arm is designed for easy transportation.
Environmental protection without waste gas, in line with energy conservation and environmental protection and green agricultural development requirements. Easy to maintain, low cost of use and maintenance.
TECHNICAL INDICATORS
Product name: |
Agricultural Drone UAV |
Item No.: |
T20 |
Brand Name: |
TENDTEK |
Usage: |
Agriculture |
Applicable Industries: |
Farms, Retail, Mining & Energy |
Warranty: |
1 Year |
Product Size: |
1900mm*1900mm*480mm (expanded) |
Package Size: |
|
Wheelbase: |
1780 mm |
Tank Capacity: |
20.1 L |
Spray Efficiency: |
8-15 Ha/hour |
Power Battery: |
14S 19000MAH*1pcs |
Empty Weight: |
25kg |
Maximum Take-off Weight: |
45kg |
Rated Take-off Weight: |
40kg |
Flight Duration : |
8-20 minutes |
Operating Height: |
1-4 meters |
Operation Time: |
5-10minutes (according to spraying volume) |
Spray Range: |
4-6 m |
Droplet Diameter: |
<150 microns |
Flight Distance: |
1000 m |
Droplet Coverage: |
> 20 drops/cm² |
The Best Working Speed: |
3-8 m/s (adjustable as needed) |
Flight Positioning Accuracy:
|
horizontal ±0.5m vertical ± 0.5m (non-RTK) vertical ±10 cm (RTK) |
Product features
One-key take off, full autonomous operation, break point flew on, out-of-control turn-around, low power turn-around, folding fuselage, one-key turn-around, mobile phone ground station, manual operation, closed control working, no drug return flight, dual magnetic compass protection, power off memory, AB point working, line to save 5 km remote control range
Select functions as required(OPTION)
High precision RTK millimeter wave radar
2cm obstacle avoidance
4G Background Management
FPV auxiliary camera
