DGM8008 Moisture Meter

DGM8008 moisture meter is our latest designed online moisture meter suitable for testing different types of grains. It is mainly used for detecting the real-time moisture content of grains during the circular drying. This moisture meter can continuously test different sizes of grains without replacing any accessories ro changing rolling wheels. This moisture meter have the function of automatic intelligent checking, it can make indepedent judgment of the operation errors.This moisture meter can detect many types of grains. And it adopts PLC real-time communication system and the LCD display and touch screen.

Product Description

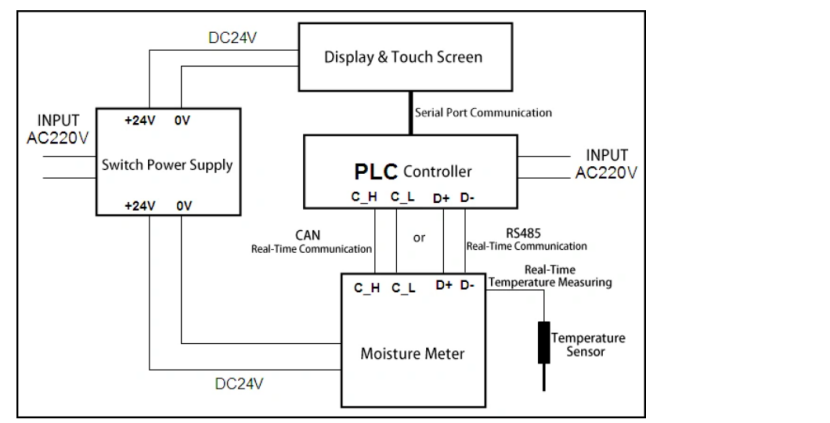

 Online Moisture Meter Operating Diagram

Notes: This moisture meter have the matched PLC controller and display & touch screen. It can be supplied together with the moisture with wxtra charge. And it can also be connected to your own equipment and we can supply the technical support(the communication data sheet).


Performance Parameters:
Testing Principle:Resistance Type
Communicate Method:RS485-Modbus or Canlink
Grain types: Indica Rice,Japonica Rice, Wheat,Barley,Corn and etc.
Testing Range:under the temperature of 20ºC
Indica Rice:8%-35%
Japonica Rice:8%-35%
Deviation Range:±0.5%(105° drying method, 5h smash)
Suitable Display:AI-10E, AI-20E, AI-70C(Alternative)
Power Supply Mode:AC200-250V/50Hz
Working temperature:-20ºC-50ºC
Relative Humidity:≤90%
Dimension:159mm(W) X 205mm(L) X 356mm(H)
Protection Level:IP21








Product Features:
1. This moisture can test different types of grain and don't need to replace rolling wheels.
2. Use the dial type feeding, so the detecting is very fast and efficient.
3. Adopts the RS485-Modbus and Canlink real-time communication.
