DGM8002 Grain Moisture Meter

DGM8002 grain moisture meter is one kind of online moisture meter. It is mainly used for testing the real-time moisture content of grains during the circular drying in the grain dryer. While, it can also be used for sample testing offline. This moisture meter can test the moisture content of different grains like Indica Rice, Japonica Rice, Wheat, Barley and it can also test the moisture content of corn by replacing one rolling wheels suitable for corn. This moisture meter adopts the cast aluminum design, thus have the obvious features of strong anti-interference capacity, high accuracy,high stability,easy to install, convenient to maintenance,seldom block the feed inlet and etc. And it also have the function of automatic checking, automatic calibration and automatic alarm.

Product Description

This moisture meter adopts PLC real-time communication system.And we also designed the suitable display and control screen to help the users read the value at once and make full use of the moisture meter.

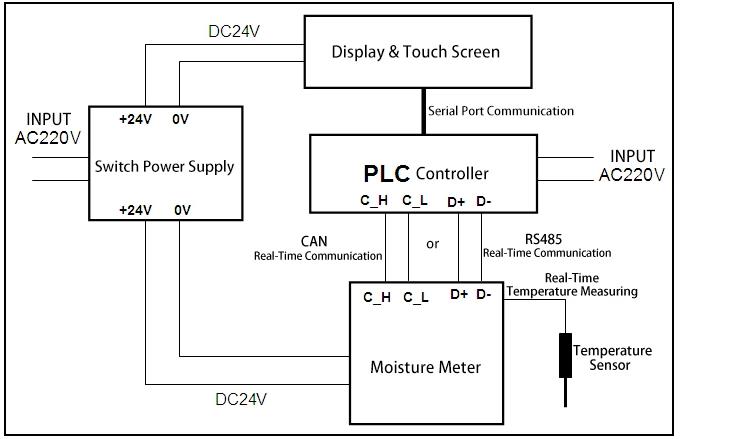

Online Moisture Meter Operating Diagram

Notes: This moisture meter have the matched PLC controller and display & touch screen. It can be supplied together with the moisture with extra charge. And it can also be connected to your own equipment and we can supply the technical support if necessary(the communication data sheet).

Product Features:
1. Support RS485-Modbus and Canlink real-time communication protocol.

2. This moisture meter can test more than 5 kinds of grains, like rice, wheat and corn.

Adjust the slider or change the grind wheel for different grains

3. The detecting time is very fast and efficient.

4. With 24V output.

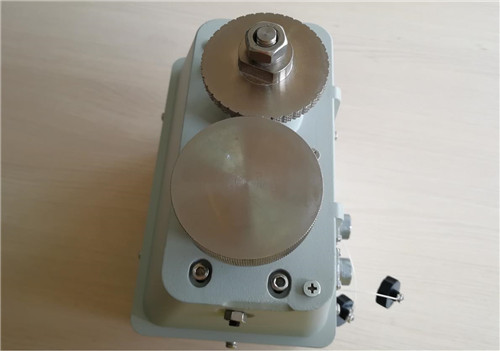

 The rolling wheel can be changed to test corn or rice and wheat.

Performance Parameters:
Testing Principle:Resistance Type
Communicate Method:RS485-Modbus or Canlink
Grain types: Indica Rice,Japonica Rice, Wheat,Barley,Corn and etc.
Testing Range:under the temperature of 20ºC
Indica Rice:10%-35%
Japonica Rice:10%-35%
Deviation Range:±0.5%(105° drying method, 5h smash)
Suitable Display:AI-10E, AI-20E, AI-70C(Alternative)
Power Supply Mode:AC200-250V/50Hz
Working temperature:-20ºC-50ºC
Relative Humidity:≤90%
Dimension:131mm(W) X 195mm(L) X 260mm(H)
Weight: 5.5kg
Protection Level:IP21
Output Mode:Relay
